AM400 - Universal Amplifier and Voltage-to-Current Converter IC

AM400 is an universal amplifier IC for sensing and signal-conditioning applications. It is suitable for differential or single-ended input voltages and generates both a voltage and a current output signal. Its modular design, integrated voltage and current source and protection functions allow a wide range of industrial applications.

Applications

  • Sensor signal-conditioner
  • Current-loop transmitter
  • Front and back end IC for µC
  • Protected analog output stage
  • Impedance converter
  • Industrial network driver


Short Specifications

Supply voltage (VCC)6 ... 35 V (typ. 24 V)
Input voltage range0 ... ±400 mV (differential) or 0 ... 5 V (single-ended)
Analog outpute.g. 0 ... 5/10 V and 0 ... 20 mA (three-wire) or 4 ... 20 mA (two-wire)
Reference voltage source5 / 10 V (max. 10 mA)
Current source0 ... 10 mA, adjustable
Temperature range-40 °C ... 85 °C
Protected against:Short circuit, reverse polarity, overvoltage

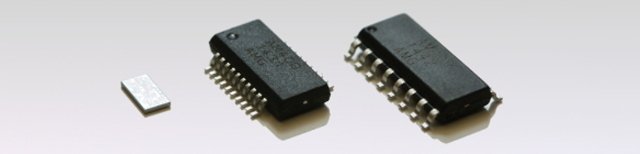

Package / Delivery formsSO16(n), SSOP20, on DIL20-adapter, sawn 6″ wafer on blue foil
RoHS statuscompliant (RoHS certificate)




Typical Application Circuits with Blockdiagram

Three-wire sensor signal-conditioner with protected voltage and current output (e.g. 0 .. 10 V & 0 .. 20 mA):

Industrial network driver with protected voltage and current output (three-wire operation):

Sensor signal-conditioner with protected current-loop output (e.g. 4 .. 20 mA):




Ordering Codes and Product Inquiry / Samples

Order numberDelivery form
AM400-0-SO16SO16(n) package
AM400-0-SSOP20SSOP20 package
AM400-WAFsawn wafer on 6″ blue foil
AM400-AdaptAM400 soldered to an SO20-DIL20 adapter




Accessories

Order NumberDescription
BBAM400An easily adaptable, preassembled breadboard. Suitable for first experiments using AM400




General Documents

Datasheet AM400
Product flyer AM400 (V/I-converter)
Product flyer AM400 (Amplifier)
IC package catalog
For die size and padout please contact sales@analogmicro.de.
