AM452 - Voltage-to-Current Converter IC

Package variants of the V/I-converter IC AM452
AM452 is a voltage-to-current converter IC with integrated protection functions suitable for sensing applications with current driven Wheatstone bridges. It converts a differential input voltage into an adjustable current output signal. The IC is suitable for two- and three-wire operation and compatible with HART-modems.

Applications

  • Sensor signal-conditioner
  • Current-loop transmitter
  • Protected V/I-converter
  • Compatible with HART-modems
  • Industrial network driver
  • Industrial process control

  • Sensor signal-conditioner
  • Current-loop transmitter
  • Protected V/I-converter
  • Compatible with HART-modems
  • Industrial network driver
  • Industrial process control


Short Specifications

Supply Voltage (VCC)6 .. 35 V (typ. 24 V)
Input voltage range0 .. ±400 mV (differential)
Current outpute.g. 4 .. 20 mA (two-wire) and 0 .. 20 mA (three-wire), adjustable
Reference voltage source5 / 10 V (max. 10 mA)
Current source0 .. 10 mA, adjustable
Temperature range-40 °C .. 85 °C
Protected against:Short circuit, reverse polarity, overvoltage
Package / Delivery formsSO16(n), on DIL16-adapter, sawn 6″ wafer on blue foil
RoHS statuscompliant (RoHS certificate)


General Documents

Datasheet AM452
Product flyer AM452
IC package catalog
For die size and padout please contact sales@analogmicro.de.




Typical Application Circuits with Blockdiagram

Protected sensor signal-conditioner in three-wire operation with current output signal (e.g. 0 .. 20 mA):
AM452 as protected sensor signal-conditioner with three-wire current output.

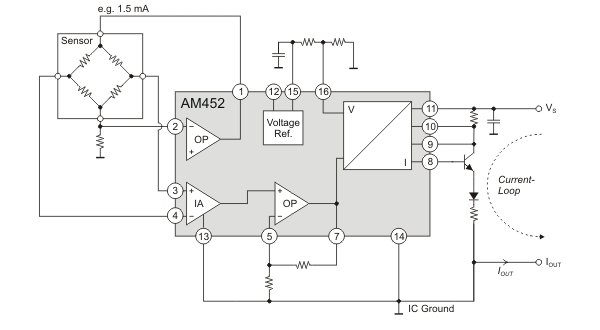

Sensor signal-conditioner with protected current-loop output (e.g. 4 .. 20 mA):
AM452 as sensor signal-conditioner with protected current-loop output.




Ordering Codes and Product Inquiry / Samples

For product inquiry choose your desired products and choose "Go to contact form". You will be redirected to the inquiry form then.

Order numberDelivery formInquiry
AM452-0-SO16SO16(n) package
AM452-WAFsawn wafer on 6″ blue foil
AM452-AdaptAM452 soldered to an SO16-DIL16 adapter




Accessories

No accessories available for this product.
