AMS 6916 - Mini Pressure Sensor with Analog Output (0.5 - 4.5 V)

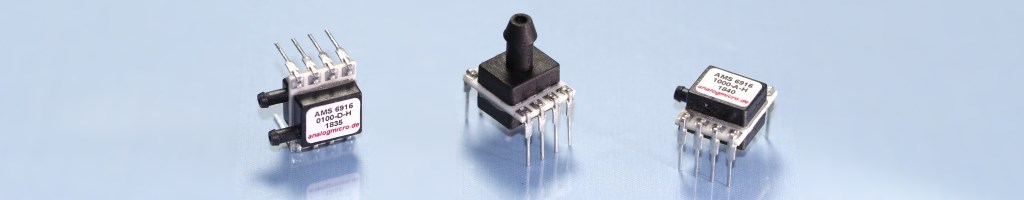

Different types of the board-mount pressure sensor series AMS 6916 with analog voltage output.
The precise, board-mountable pressure sensors from the AMS 6916 series have an amplified, ratiometric voltage output (0.5 ... 4.5 V at VS = 5 V). The AMS 6916 are extensively calibrated, linearized and temperature compensated and feature an excellent long term stability, high precision at room temperature and a small total error band (TEB) in a temperature range of 0 bis 60 °C. Due to their compact DIL-package the sensors are especially suitable for applications, where an intensive miniaturization is and a direct integration on printed circuit boards is required. The pressure sensor series AMS 6916 comprises differential pressure sensors, relative pressure sensors and absolute pressure sensors with vertical and horizontal pressure ports in pressure ranges from 0 ... 5 mbar up to 0 ... 1 bar

Short Specifications

Pressure Ranges*bidirectional differential:-5 .. 5 mbar up to -1000 .. 1000 mbar
differential / gage:0 .. 5 mbar up to 0 .. 1000 mbar
absolute:0 .. 1000 mbar
barometric:700 .. 1200 mbar
Total Error Band (TEB)
(T = 0 .. 60 °C)
1.5 %FSO (max.)for ultra low pressure ranges (≤ 10 mbar)
1.0 %FSO (max.)for low and standard pressure ranges (> 10 mbar)
Ratiometric Output Voltage0.5 ... 4.5 V
Supply Voltage (VS)4.75 .. 4.25 V (typ. 5.0 V)
Packageceramic DIP-8 (width: 0.53 inch)
RoHS statuscompliant (RoHS certificate)
*For detailed information on the pressure ranges in psi and mbar please see "Pressure Ranges".


Features

  • Amplified pressure sensor for PCB assembly with ratiometric voltage output (0.5 ... 4.5 V)
  • Calibrated and temperature compensated
  • Pressure sensor variants for differential / relative, bidirectional differential and absolute (barometric) pressure
  • Many pressure ranges available
  • High accuracy at room temperature (e.g. 0.5 %FSO for standard pressure ranges)
  • Small overall error within the temperature range of 0 .. 60 °C
  • High long term stability
  • Compact DIL-8 package (length x width: 13.4 mm x 9.9 mm)
  • Horizontal and vertical pressure ports available
  • Customized pressure ranges and additional modifications available on request
  • RoHS and REACH compliant


Typical Applications

  • Static and dynamic pressure measurement
  • Barometric pressure measurement
  • Industrial process control
  • Vacuum monitoring
  • Gas flow measurement
  • Fluid level measurement
  • Medical instrumentation
  • Heating, Ventilation and Air Conditioning (HVAC)




AMS 6916's Model Variants, Pressure Ranges and Ordering Codes

For product inquiry choose your desired products and choose "Go to contact form". You will be redirected to the inquiry form then.

Differential Pressure Sensors

OEM pressure sensor (ordering code)Pressure typePressure range
in mbar
Pressure range
in psi
Inquiry
Ultra Low Pressure
AMS 6916-0005-Ddifferential / relative0 ... 5 mbar0 ... 0.0725 psi
AMS 6916-0010-Ddifferential / relative0 ... 10 mbar0 ... 0.1450 psi
Low Pressure
AMS 6916-0020-Ddifferential / relative0 ... 20 mbar0 ... 0.2901 psi
AMS 6916-0050-Ddifferential / relative0 ... 50 mbar0 ... 0.7252 psi
AMS 6916-0100-Ddifferential / relative0 ... 100 mbar0 ... 1.450 psi
Standard Pressure
AMS 6916-0200-Ddifferential / relative0 ... 200 mbar0 ... 2.901 psi
AMS 6916-0350-Ddifferential / relative0 ... 350 mbar0 ... 5.076 psi
AMS 6916-1000-Ddifferential / relative0 ... 1000 mbar0 ... 14.50 psi
All differential pressure sensors can be used as relative pressure sensors for the measurement of pressure and vacuum.


Bidirectional Differential Pressure Sensors

OEM pressure sensor (ordering code)Pressure typePressure range
in mbar
Pressure range
in psi
Inquiry
Ultra Low Pressure
AMS 6916-0005-D-Bbidirectional differential-5 ... 5 mbar-0.0725 ... 0.0725 psi
AMS 6916-0010-D-Bbidirectional differential-10 ... 10 mbar-0.1450 ... 0.1450 psi
Low Pressure
AMS 6916-0020-D-Bbidirectional differential-20 ... 20 mbar-0.2901 ... 0.2901 psi
AMS 6916-0050-D-Bbidirectional differential-50 ... 50 mbar-0.7252 ... 0.7252 psi
Standard Pressure
AMS 6916-0200-D-Bbidirectional differential-200 ... 200 mbar-2.901 ... 2.901 psi
AMS 6916-0350-D-Bbidirectional differential-350 ... 350 mbar-5.076 ... 5.076 psi
AMS 6916-1000-D-Bbidirectional differential-1000 ... 1000 mbar-14.50 ... 14.50 psi

Absolute Pressure Sensors

OEM pressure sensor (ordering code)Pressure typePressure range
in mbar
Pressure range
in psi
Inquiry
Standard Pressure
AMS 6916-0500-Aabsolute0 ... 500 mbar0 ... 7.252 psi
AMS 6916-1000-Aabsolute0 ... 1000 mbar0 ... 14.50 psi

Barometric Pressure Sensors

OEM pressure sensor (ordering code)Pressure typePressure range
in mbar
Pressure range
in psi
Inquiry
Standard Pressure
AMS 6916-1200-Babsolute700 ... 1200 mbar10.15 ... 17.40 psi




Accessories

Order NumberDescriptionQuote
Silicon-Tubing-1-3
  • Material: Silicone
  • Inner diameter: 1.6 mm, outer diameter: 3.2 mm
  • Temperature range: -40 °C up to 125 °C
  • Maximum working pressure: 3 bar




Documentation and Downloads

TitelDownload

Datasheets and general documents

Datasheet AMS 6916, rev. 1.0pdf Datasheet
Product flyer AMS 6916, October 2018pdf Flyer

Technical drawings, CAD models and footprints

3D-Model for differential pressure sensors from the AMS 6916 series, step file, rev. 1.0stp AMS 6916-xxxx-D-H Step File
3D-Model for absolute and barometric pressure sensors from the AMS 6916 series, step file, rev. 1.0stp AMS 6916-xxxx-A/B-H Step File
3D-Model for gage pressure sensors from the AMS 6916 series with vertical pressure port, step file, rev. 1.0stp AMS 6916-xxxx-G-V Step File
